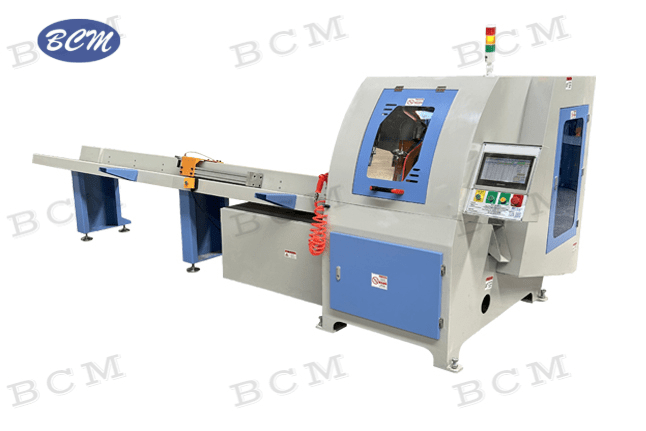

Triangular wooden cutting machine BC610
1. Automatic pushing, automatic sizing, automatic sawing: servo motor drive gear push wood.
2. Touch screen input size, intelligent calculation size cutting, no need to calculate size frequently, save manual sawing process.
3.45 degree wood sawing at the same time: can sawing 45 degree triangle, trapezoid, right Angle trapezoid, parallelogram, one time sawing multiple pieces of wood.
4. Allow to place a layer of wood (a layer can be put more than one piece) to overcome the problem that ordinary miter saws can only cut a single saw, and can not cut the triangle.
5. Reduce labor intensity and improve efficiency.
型號 Model | BC610 |
主機尺寸 Main machine dimensions | 1680*1180*1580(mm) |
進給平臺長度 Input belt length | 3M/5M/7M(Customize) |
最大切割尺寸 Maximum cutting size | 長度任意(Customize)L*寬W 100mm*高H 80mm |
適用的木方規格 Suitable wood size | 長L可以任意調節(Customize)(可加長) 寬W10-100mm (可多條) 高H 10-80mm(可多條) |
鋸切精度 Truncation error within | ±1mm |
功率 Power | 5.05KW |
鋸切速度 Blade speed | 3-5s/次(可調) |
進給速度 & 倒擋速度 Feed speed & Reverse speed | 0-60 M/min ; 0-70 M/min |
氣壓 Air pressure | 0.6MPa |
主機重量 weight | 1500.00KG |
